Flow Nodered per aprire il garage

Questo articolo ti aiuta a configurare il Raspberry per utilizzarlo come sistema di controllo via Web dell’apertura di un garage o cancello automatico.

In particolare viene spiegato come aggiungere un flow Nodered per l’apertura del garage.

Prerequisiti

Per eseguire questa procedura devi aver già:

  • installato un Raspberry nella tua rete domestica
  • installato Il sistema operativo Raspbian
  • abilitato Nodered
  • installato Arduino

Per ottenere i prerequisiti leggi prima questo articolo:

Installare il software del Raspberry

Controllare Nodered

Con un computer, collegarsi sulla stessa rete dove è acceso il raspberry con indirizzo:

192.168.1.102

Aprire il browser e digitare nella barra degli indirizzi:

http://192.168.1.102:1880

Dovrebbe aprirsi una pagina

Nodered
pagina Nodered



Installazione del flow di controllo

Selezionare tutto il testo della riga qui sotto ed eseguire copia o CTRL+C:

[{"id":"2dbfbbf4.ae94a4","type":"inject","z":"94fae675.1d692","name":"apre box","topic":"","payload":"","payloadType":"date","repeat":"","crontab":"","once":false,"x":324.3333282470703,"y":105.33331680297852,"wires":[["34703531.eed92a"]]},{"id":"aa47cb32.612a48","type":"serial in","z":"94fae675.1d692","name":"legge risposte","serial":"9564af5.de8a25","x":200,"y":300,"wires":[["8fee9d74.4a1cd","e4aec66d.35b6f","ba9c5a36.93fd18","5c20250e.7577a4","490301d5.6de9a"]]},{"id":"874c3e54.e72b6","type":"serial out","z":"94fae675.1d692","name":"invia comando","serial":"9564af5.de8a25","x":1240,"y":140,"wires":[]},{"id":"34703531.eed92a","type":"function","z":"94fae675.1d692","name":"comando apri","func":"msg.payload=\"set output:0=0 4\\nstatus\\n\"\nreturn msg;","outputs":1,"noerr":0,"x":672.3333129882812,"y":103.9999885559082,"wires":[["874c3e54.e72b6"]]},{"id":"63746e68.d27258","type":"function","z":"94fae675.1d692","name":"comando chiudi","func":"msg.payload=\"set output:2=0 4\\nstatus\\n\"\nreturn msg;","outputs":1,"noerr":0,"x":687.1666259765625,"y":197.33333206176758,"wires":[["874c3e54.e72b6"]]},{"id":"aeee81b7.da0cf","type":"inject","z":"94fae675.1d692","name":"chiude box","topic":"","payload":"","payloadType":"date","repeat":"","crontab":"","once":false,"x":335.8333282470703,"y":201.33334350585938,"wires":[["63746e68.d27258"]]},{"id":"8744b55f.d16ba8","type":"inject","z":"94fae675.1d692","name":"legge stato","topic":"","payload":"","payloadType":"date","repeat":"60","crontab":"","once":true,"x":310,"y":60,"wires":[["bcb5fff.9f0cc"]]},{"id":"bcb5fff.9f0cc","type":"function","z":"94fae675.1d692","name":"comando status","func":"msg.payload=\"status\\n\"\nreturn msg;","outputs":1,"noerr":0,"x":660,"y":60,"wires":[["874c3e54.e72b6"]]},{"id":"8fee9d74.4a1cd","type":"debug","z":"94fae675.1d692","name":"","active":false,"console":"false","complete":"false","x":270,"y":500,"wires":[]},{"id":"d89d1082.08f57","type":"websocket in","z":"94fae675.1d692","name":"comando da websocket","server":"aaf6a7c3.cd43a8","client":"","x":285,"y":875,"wires":[["f945d14a.6144f","5ca2bae.cffdbc4","7d8c690d.bb57b","5172868d.527da","6cef6712.54dcb","8c172a11.6d7928"]]},{"id":"f945d14a.6144f","type":"switch","z":"94fae675.1d692","name":"richiesta lista sensori","property":"payload","propertyType":"msg","rules":[{"t":"cont","v":"get sensors","vt":"str"}],"checkall":"true","outputs":1,"x":590.7498474121094,"y":768.4166030883789,"wires":[["e018d9b5.ed7cc8"]]},{"id":"e018d9b5.ed7cc8","type":"function","z":"94fae675.1d692","name":"genera lista sensori","func":"msg.payload={};\nmsg.payload.sensors={};\nmsg.payload.sensors[\"Apre box\"]={};\nmsg.payload.sensors[\"Chiude box\"]={};\nmsg.payload.sensors[\"Luce\"]={};\nmsg.payload.sensors[\"Box\"]={};\nreturn msg;","outputs":1,"noerr":0,"x":807.7498474121094,"y":768.4166030883789,"wires":[["9dbd507.e9de8b","423f646f.f1893c"]]},{"id":"9dbd507.e9de8b","type":"debug","z":"94fae675.1d692","name":"Risposta","active":false,"console":"false","complete":"payload","x":1016.4165140787759,"y":777.7499364217122,"wires":[]},{"id":"5ca2bae.cffdbc4","type":"switch","z":"94fae675.1d692","name":"richiesto status","property":"payload","propertyType":"msg","rules":[{"t":"eq","v":"status","vt":"str"}],"checkall":"true","outputs":1,"x":580,"y":1080,"wires":[["874c3e54.e72b6"]]},{"id":"7d8c690d.bb57b","type":"function","z":"94fae675.1d692","name":"Apre box","func":"msg.INsensor=\"Apre box\";\nmsg.OUTsensor=\"0\";\nmsg.OUTaccendi=\"set output:\"+msg.OUTsensor+\"=0 4\\nstatus\";\nmsg.OUTspegni=\"status\"\nreturn msg;\n","outputs":1,"noerr":0,"x":866.4165954589844,"y":826.0832748413086,"wires":[["14de4734.c0f9a1"]]},{"id":"5172868d.527da","type":"function","z":"94fae675.1d692","name":"Chiude box","func":"msg.INsensor=\"Chiude box\";\nmsg.OUTsensor=\"2\";\nmsg.OUTaccendi=\"set output:\"+msg.OUTsensor+\"=0 4\\nstatus\";\nmsg.OUTspegni=\"status\"\nreturn msg;\n","outputs":1,"noerr":0,"x":887.2497253417969,"y":871.0832824707031,"wires":[["14de4734.c0f9a1"]]},{"id":"6cef6712.54dcb","type":"function","z":"94fae675.1d692","name":"Luce","func":"msg.INsensor=\"Luce\";\nmsg.OUTsensor=\"1\";\nmsg.OUTaccendi=\"set output:\"+msg.OUTsensor+\"=1\\nstatus\";\nmsg.OUTspegni=\"set output:\"+msg.OUTsensor+\"=0\\nstatus\"\nreturn msg;","outputs":1,"noerr":0,"x":853.9165344238281,"y":912.7499389648438,"wires":[["14de4734.c0f9a1"]]},{"id":"14de4734.c0f9a1","type":"function","z":"94fae675.1d692","name":"traduci","func":"var INsensor=msg.INsensor;\nvar OUTsensor=msg.OUTsensor;\nvar INaccendi=\"accendi \"+INsensor;\nvar INspegni=\"spegni \"+INsensor;\nvar OUTaccendi=msg.OUTaccendi;\nvar OUTspegni=msg.OUTspegni;\nif(msg.payload==INaccendi){\n msg.payload=OUTaccendi;\n return msg;\n}\nif(msg.payload==INspegni){\n msg.payload=OUTspegni;\n return msg;\n}\nreturn null;","outputs":1,"noerr":0,"x":1231.416534423828,"y":836.0832824707031,"wires":[["874c3e54.e72b6"]]},{"id":"e4aec66d.35b6f","type":"switch","z":"94fae675.1d692","name":"Apre box","property":"payload","propertyType":"msg","rules":[{"t":"cont","v":"status: out0 low","vt":"str"},{"t":"cont","v":"status: out0 high","vt":"str"}],"checkall":"true","outputs":2,"x":780,"y":240,"wires":[["4e597552.708904","750bc868.f7fa68"],["f11f6c5c.0184b8","750bc868.f7fa68"]]},{"id":"ba9c5a36.93fd18","type":"switch","z":"94fae675.1d692","name":"Chiude box","property":"payload","propertyType":"msg","rules":[{"t":"cont","v":"status: out2 low","vt":"str"},{"t":"cont","v":"status: out2 high","vt":"str"}],"checkall":"true","outputs":2,"x":750,"y":300,"wires":[["5bc60d27.8baa6c","750bc868.f7fa68"],["c84f79cb.ba2c58","750bc868.f7fa68"]]},{"id":"4e597552.708904","type":"function","z":"94fae675.1d692","name":"Risposta Apre box premuto","func":"msg.payload={};\nmsg.payload[\"status: Apre box\"]={sensor:\"PT\",status:\"premuto\"};\nmsg.payload[\"sensor buttons: Apre box\"]={sensor:\"Apre box\"};\nmsg.payload[\"sensor buttons: Apre box\"].button1={description:\"non premere\",command:\"spegni Apre box\"};\n\nreturn msg;","outputs":1,"noerr":0,"x":1236.523681640625,"y":220.71426391601562,"wires":[["423f646f.f1893c"]]},{"id":"f11f6c5c.0184b8","type":"function","z":"94fae675.1d692","name":"Risposta Apre box non premuto","func":"msg.payload={};\nmsg.payload[\"status: Apre box\"]={sensor:\"Apre box\",status:\"non premuto\"};\nmsg.payload[\"sensor buttons: Apre box\"]={sensor:\"Apre box\"};\nmsg.payload[\"sensor buttons: Apre box\"].button1={description:\"apri\",command:\"accendi Apre box\"};\n\n\nreturn msg;","outputs":1,"noerr":0,"x":1252.5240478515625,"y":256.3810729980469,"wires":[["423f646f.f1893c"]]},{"id":"5bc60d27.8baa6c","type":"function","z":"94fae675.1d692","name":"Risposta Chiude box premuto","func":"msg.payload={};\nmsg.payload[\"status: Chiude box\"]={sensor:\"Chiude box\",status:\"premuto\"};\nmsg.payload[\"sensor buttons: Chiude box\"]={sensor:\"Chiude box\"};\nmsg.payload[\"sensor buttons: Chiude box\"].button1={description:\"non premere\",command:\"spegni Chiude box\"};\n\nreturn msg;","outputs":1,"noerr":0,"x":1250,"y":292,"wires":[["423f646f.f1893c"]]},{"id":"c84f79cb.ba2c58","type":"function","z":"94fae675.1d692","name":"Risposta Chiude box non premuto","func":"msg.payload={};\nmsg.payload[\"status: Chiude box\"]={sensor:\"Chiude box\",status:\"non premuto\"};\nmsg.payload[\"sensor buttons: Chiude box\"]={sensor:\"Chiude box\"};\nmsg.payload[\"sensor buttons: Chiude box\"].button1={description:\"chiudi\",command:\"accendi Chiude box\"};\n\n\nreturn msg;","outputs":1,"noerr":0,"x":1270.2384033203125,"y":329.04766845703125,"wires":[["423f646f.f1893c"]]},{"id":"5c20250e.7577a4","type":"switch","z":"94fae675.1d692","name":"Box","property":"payload","propertyType":"msg","rules":[{"t":"cont","v":"status: Box aperto1","vt":"str"},{"t":"cont","v":"status: Box chiuso1","vt":"str"}],"checkall":"false","outputs":2,"x":390,"y":420,"wires":[["b7a3857a.2993f","750bc868.f7fa68","8fd4f87.359e908"],["e2c39cb2.6378f","750bc868.f7fa68","8546d4e5.9839a"]],"outputLabels":["aperto","chiuso"]},{"id":"b7a3857a.2993f","type":"function","z":"94fae675.1d692","name":"Risposta Box aperto","func":"msg.payload={};\nmsg.payload[\"status: Box\"]={sensor:\"Box\",status:\"aperto\"};\nmsg.payload[\"sensor buttons: Box\"]={sensor:\"Box\"};\nmsg.payload[\"sensor buttons: Box\"].button0={description:\"chiudi\",command:\"spegni Box\"};\n\nreturn msg;","outputs":1,"noerr":0,"x":1232.90478515625,"y":392.2379150390625,"wires":[["423f646f.f1893c"]]},{"id":"e2c39cb2.6378f","type":"function","z":"94fae675.1d692","name":"Risposta Box chiuso","func":"msg.payload={};\nmsg.payload[\"status: Box\"]={sensor:\"Box\",status:\"chiuso\"};\nmsg.payload[\"sensor buttons: Box\"]={sensor:\"Box\"};\nmsg.payload[\"sensor buttons: Box\"].button1={description:\"apri\",command:\"accendi Box\"};\n\nreturn msg;","outputs":1,"noerr":0,"x":1225.333251953125,"y":448.8570556640625,"wires":[["423f646f.f1893c"]]},{"id":"82717a8f.4bdf6","type":"function","z":"94fae675.1d692","name":"CurrentDoorState:true","func":"msg.payload={CurrentDoorState:true\n}\n//msg.payload={CurrentDoorState:true,\n// TargetDoorState:true\n//}\n//msg.mittente=\"sensori\";\nreturn msg;\n\n//Try one of these: Name, CurrentDoorState, TargetDoorState, ObstructionDetected, LockCurrentState, LockTargetState, Name","outputs":1,"noerr":0,"x":360,"y":1417,"wires":[["3e653eac.32147a","8971e941.8eced8"]]},{"id":"565accaf.c1c69c","type":"inject","z":"94fae675.1d692","name":"simula chiuso","topic":"","payload":"","payloadType":"date","repeat":"","crontab":"","once":false,"x":120,"y":1439,"wires":[["82717a8f.4bdf6"]]},{"id":"3cc10acb.7304c6","type":"function","z":"94fae675.1d692","name":"CurrentDoorState:false","func":"msg.payload={CurrentDoorState:false}\n//msg.payload={CurrentDoorState:false,\n//TargetDoorState:false}\n//msg.mittente=\"sensori\";\nreturn msg;\n\n//Try one of these: Name, CurrentDoorState, TargetDoorState, ObstructionDetected, LockCurrentState, LockTargetState, Name","outputs":1,"noerr":0,"x":370,"y":1319,"wires":[["3e653eac.32147a","8971e941.8eced8"]]},{"id":"703b654b.ab7f6c","type":"inject","z":"94fae675.1d692","name":"simula aperto","topic":"","payload":"","payloadType":"date","repeat":"","crontab":"","once":false,"x":170,"y":1319,"wires":[["3cc10acb.7304c6"]]},{"id":"750bc868.f7fa68","type":"debug","z":"94fae675.1d692","name":"interpretato","active":false,"console":"false","complete":"payload","x":930,"y":360,"wires":[]},{"id":"92b4080.17156f8","type":"http in","z":"94fae675.1d692","name":"","url":"/box","method":"get","upload":false,"swaggerDoc":"","x":320,"y":1660,"wires":[["a17914bc.cb6e9"]]},{"id":"423f646f.f1893c","type":"websocket out","z":"94fae675.1d692","name":"","server":"aaf6a7c3.cd43a8","client":"","x":1546.4285714285713,"y":352.85714285714283,"wires":[]},{"id":"490301d5.6de9a","type":"switch","z":"94fae675.1d692","name":"Luce","property":"payload","propertyType":"msg","rules":[{"t":"cont","v":"status: out1 low","vt":"str"},{"t":"cont","v":"status: out1 high","vt":"str"}],"checkall":"true","outputs":2,"x":710,"y":500,"wires":[["c544f4e1.41c4"],["a76da343.a5931"]]},{"id":"c544f4e1.41c4","type":"function","z":"94fae675.1d692","name":"Risposta Luce accesa","func":"msg.payload={};\nmsg.payload[\"status: Luce\"]={sensor:\"Luce\",status:\"accesa\"};\nmsg.payload[\"sensor buttons: Luce\"]={sensor:\"Luce\"};\nmsg.payload[\"sensor buttons: Luce\"].button0={description:\"spegni\",command:\"spegni Luce\"};\nreturn msg;","outputs":1,"noerr":0,"x":1400,"y":500,"wires":[["423f646f.f1893c"]]},{"id":"a76da343.a5931","type":"function","z":"94fae675.1d692","name":"Risposta Luce spenta","func":"msg.payload={};\nmsg.payload[\"status: Luce\"]={sensor:\"Luce\",status:\"spenta\"};\nmsg.payload[\"sensor buttons: Luce\"]={sensor:\"Luce\"};\nmsg.payload[\"sensor buttons: Luce\"].button1={description:\"accendi\",command:\"accendi Luce\"};\n\nreturn msg;","outputs":1,"noerr":0,"x":1380,"y":540,"wires":[["423f646f.f1893c"]]},{"id":"a17914bc.cb6e9","type":"function","z":"94fae675.1d692","name":"Pagename=box","func":"msg.egoPageName=\"box\";\nmsg.egoWebSocket=\"box\";\nmsg.egoFiltro=\"\";\nmsg.egoPageTitle=\"Box\";\nreturn msg;","outputs":1,"noerr":0,"x":560,"y":1700,"wires":[["fcdd7771.03e5c8"]]},{"id":"8c172a11.6d7928","type":"function","z":"94fae675.1d692","name":"Box","func":"msg.INsensor=\"Box\";\nmsg.OUTsensor=\"0 2\";\nmsg.OUTaccendi=\"set output:\"+0+\"=0 4\\nstatus\";\nmsg.OUTspegni=\"set output:\"+2+\"=0 4\\nstatus\";\nreturn msg;","outputs":1,"noerr":0,"x":850,"y":960,"wires":[["14de4734.c0f9a1"]]},{"id":"5ae4d5ba.7c49f4","type":"debug","z":"94fae675.1d692","name":"web","active":true,"console":"false","complete":"true","x":830,"y":1720,"wires":[]},{"id":"df7c2da4.29ec78","type":"function","z":"94fae675.1d692","name":"discover","func":"msg.payload={\n DiscoverBridgedAccessories: 0\n}\n//se premo su applicazione apri garage\n//risponde\n//payload.TargetDoorState:0\n\n//Characteristic TargetDoorState cannot be written.\n//Try one of these: ConfigureBridgedAccessoryStatus, DiscoverBridgedAccessories, DiscoveredBridgedAccessories, Name\nreturn msg;","outputs":1,"noerr":0,"x":1170.5,"y":1528,"wires":[[]]},{"id":"4aaad7b9.1685","type":"debug","z":"94fae675.1d692","name":"brige conf","active":true,"console":"false","complete":"true","x":1120,"y":1680,"wires":[]},{"id":"f5e8ac79.42ef8","type":"inject","z":"94fae675.1d692","name":"","topic":"","payload":"","payloadType":"date","repeat":"","crontab":"","once":false,"x":992.5,"y":1504,"wires":[["df7c2da4.29ec78"]]},{"id":"d4bb3088.bd872","type":"function","z":"94fae675.1d692","name":"aggiuge garage","func":"msg.payload={\n DiscoveredBridgedAccessories:\"111-11-112\"\n}\n\n//Characteristic TargetDoorState cannot be written.\n//Try one of these: ConfigureBridgedAccessoryStatus, DiscoverBridgedAccessories, DiscoveredBridgedAccessories, Name\nreturn msg;","outputs":1,"noerr":0,"x":1172,"y":1560,"wires":[[]]},{"id":"8662923.c4bf67","type":"inject","z":"94fae675.1d692","name":"","topic":"","payload":"","payloadType":"date","repeat":"","crontab":"","once":false,"x":965.5,"y":1558,"wires":[["d4bb3088.bd872"]]},{"id":"6de40470.dffa44","type":"debug","z":"94fae675.1d692","name":"Garage","active":true,"console":"false","complete":"true","x":1143.5,"y":1440,"wires":[]},{"id":"3406fdc.082df82","type":"function","z":"94fae675.1d692","name":"Pagename=garage","func":"msg.egoPageName=\"garage\";\nmsg.egoWebSocket=\"box\";\nmsg.egoFiltro=\"Box\";\nmsg.egoPageTitle=\"Garage\";\nreturn msg;","outputs":1,"noerr":0,"x":590,"y":1800,"wires":[["fcdd7771.03e5c8","760cc26e.8c730c"]]},{"id":"ddaecef.66ea9b","type":"http in","z":"94fae675.1d692","name":"","url":"/garage","method":"get","upload":false,"swaggerDoc":"","x":310,"y":1800,"wires":[["3406fdc.082df82","760cc26e.8c730c"]]},{"id":"fcdd7771.03e5c8","type":"template","z":"94fae675.1d692","name":"Status Web Page","field":"payload","fieldType":"msg","format":"html","syntax":"mustache","template":"<!DOCTYPE HTML>\n<html>\n <head>\n <title>{{egoPageTitle}}</title>\n\t <style>\n h1{\n font-family: arial, sans-serif;\n }\n\t\ttable {\n\t\t\tfont-family: arial, sans-serif;\n\t\t\tborder-collapse: collapse;\n\t\t\twidth: 100%;\n\t\t\tfont-size: 36px;\n\t\t}\n\n\t\ttd, th {\n\t\t\tborder: 1px solid #dddddd;\n\t\t\ttext-align: left;\n\t\t\tpadding: 8px;\n\t\t}\n\n\t\ttr:nth-child(even) {\n\t\t\tbackground-color: #dddddd;\n\t\t}\n\t\tbutton {\n\t\t\tfont-family: arial, sans-serif;\n\t\t\twidth: 90%;\n\t\t\tfont-size: 36px;\n\t\t}\n\t</style>\n <script type=\"text/javascript\">\n var ws;\n var wsUri = \"ws:\";\n var loc = window.location;\n console.log(loc);\n if (loc.protocol === \"https:\") { wsUri = \"wss:\"; }\n // This needs to point to the web socket in the Node-RED flow\n // ... in this case it's ws/simple\n wsUri += \"//\" + loc.host + loc.pathname.replace(\"{{egoPageName}}\",\"ws/{{egoWebSocket}}\");\n\n function wsConnect() {\n console.log(\"connect\",wsUri);\n ws = new WebSocket(wsUri);\n //var line = \"\"; // either uncomment this for a building list of messages\n ws.onmessage = function(msg) {\n var line = \"\"; // or uncomment this to overwrite the existing message\n // parse the incoming message as a JSON object\n var data = msg.data;\n\t\t\t\tconsole.log(\"data '\"+data+\"'\");\n\t\t\t\tvar obj=JSON.parse(data);\n\t\t\t\tfor(var cmd in obj){//interprete\n\t\t\t\t\tconsole.log(\"cmd \"+cmd);\n\t\t\t\t\tif(cmd==\"sensors\"){ //risposta sensors\n\t\t\t\t\t\tgenerateTable(obj[cmd]);\n\t\t\t\t\t\tws.send(\"status\");\n\t\t\t\t\t}\n\t\t\t\t\tif(cmd.startsWith(\"status:\")){ //risposta status\n\t\t\t\t\t\tgenerateStatus(obj[cmd]);\n\t\t\t\t\t}\n\t\t\t\t\tif(cmd.startsWith(\"sensor buttons:\")){ //risposta sensor buttons\n\t\t\t\t\t\tgenerateButtons(obj[cmd]);\n\t\t\t\t\t}\n\t\t\t\t}\n //console.log(data);\n // build the output from the topic and payload parts of the object\n //line += \"<p>\"+data+\"</p>\";\n // replace the messages div with the new \"line\"\n //document.getElementById('messages').innerHTML = line;\n //ws.send(JSON.stringify({data:data}));\n }\n ws.onopen = function() {\n // update the status div with the connection status\n document.getElementById('status').innerHTML = \"connected\";\n\t\t\t\t//comando get sensors\n ws.send(\"get sensors\");\n console.log(\"connected\");\n\t\t\t\tvar autoCommand=\"{{egoAutoCommand}}\";\n\t\t\t\tif ( autoCommand != null ) {\n\t\t\t\t\tif(autoCommand!=\"\"){\n\t\t\t\t\t\tws.send(autoCommand);\n\t\t\t\t\t}\n\t\t\t\t}\n\t\t\t\t\t\n }\n ws.onclose = function() {\n // update the status div with the connection status\n document.getElementById('status').innerHTML = \"not connected\";\n // in case of lost connection tries to reconnect every 3 secs\n setTimeout(wsConnect,3000);\n }\n\t\t\t ws.disconnect = function() {\n // update the status div with the connection status\n document.getElementById('status').innerHTML = \"not connected\";\n // in case of lost connection tries to reconnect every 3 secs\n setTimeout(wsConnect,3000);\n }\n }\n \n function doit(m) {\n if (ws) { ws.send(m); }\n }\n\t\tfunction generateRow(sensor){\n\t\t\tconsole.log(\"generateRow \"+sensor);\n\t\t\trow=\"<tr>\\n\";\n\t\t\trow+=\"<td id='\"+sensor+\"'>\"+ sensor +\"</td>\\n\";\n\t\t\trow+=\"<td id='\"+sensor+\"-status'></td>\\n\";\n\t\t\trow+=\"<td id='\"+sensor+\"-button0'></td>\\n\"; \n\t\t\trow+=\"<td id='\"+sensor+\"-button1'></td>\\n\"; \n\t\t\trow+=\"</tr>\\n\";\n\t\t\treturn row;\n\t\t}\n\t\tfunction generateButton(sensor,description,command,buttonN){\n\t\t\tline=\"<button type='button' onclick='doit(\\\"\"+command+\"\\\");'>\"+description+\"</button>\";\n\t\t\tdocument.getElementById(sensor+\"-button\"+buttonN).innerHTML = line;\n\t\t\t\n\t\t\treturn;\n\t\t}\n\t\tfunction generateStatus(sensorStatus){\n\t\t\tvar sensor=sensorStatus[\"sensor\"];\n\t\t\tvar status=sensorStatus[\"status\"];\n\t\t\t\n\t\t\tvar el=document.getElementById(sensor+\"-status\");\n\t\t\tif(el===null)\n\t\t\t\treturn;\n\t\t\tel.innerHTML = status;\n\t\t\t\n\t\t}\n\t\tfunction eraseButton(sensor,buttonN){\n\t\t\t\n\t\t\tdocument.getElementById(sensor+\"-button\"+buttonN).innerHTML = \"\";\n\t\t\t\n\t\t\treturn;\n\t\t}\n\t\tfunction generateButtons(sensorButtons){\n\t\t\tvar sensor=sensorButtons[\"sensor\"];\n\t\t\tvar i=0;\n\t\t\tfor(var i = 0;i < 2;i++){\n\t\t\t\tvar sb=sensorButtons[\"button\"+i];\n\t\t\t\tconsole.log(\"valore sb \"+sb);\n\t\t\t\tif(typeof sb===\"undefined\"){\n\t\t\t\t\n\t\t\t\t\teraseButton(sensor,i);\n\t\t\t\t}else{\n\t\t\t\t\tvar description=sb[\"description\"];\n\t\t\t\t\tvar command=sb[\"command\"];\n\t\t\t\t\tvar buttonN=i;\n\t\t\t\t\tgenerateButton(sensor,description,command,buttonN);\n\t\t\t\t}\n\t\t\t}\n\t\t\t\n\t\t\t\n\t\t\treturn;\n\t\t}\n\t\tfunction generateTable(sensors){\n\t\t\tvar rows=\"<tr><th>Sensore</th>\\n\";\n\t\t\trows+=\"<th>Stato</th>\\n\";\n\t\t\trows+=\"<th>spegni</th>\\n\"; \n\t\t\trows+=\"<th>accendi</th>\\n\";\n\t\t\trows+=\"</tr>\\n\";\n\t\t\tvar filtro=\"{{egoFiltro}}\";\n\t\t\tfor(var sensor in sensors){\t\t\t\t\n\t\t\t\tif ( (filtro != null) && !(filtro==\"\")) {\n\t\t\t\t\tconsole.log(\"filtro \"+filtro);\n\t\t\t\t\tif(sensor==filtro){\n\t\t\t\t\t\tconsole.log(\"sensor \"+sensor);\n\t\t\t\t\t\trows+=generateRow(sensor);\n\t\t\t\t\t}\n\t\t\t\t}else{\n\t\t\t\t\tconsole.log(\"sensor \"+sensor);\n\t\t\t\t\trows+=generateRow(sensor);\n\t\t\t\t}\n\t\t\t}\n\t\t console.log(rows);\n\t\t\tdocument.getElementById(\"sensors\").innerHTML = rows;\n\t\t//\tfor(var sensor in sensors){\n\t\t//\t\tdoit(\"get \"+sensor);\n\t\t//\t}\n\t\t\t\n\t\t}\n </script>\n </head>\n <body onload=\"wsConnect();\" onunload=\"ws.disconnect();\">\n <font face=\"Arial\">\n <h1>Sensori</h1>\n <div id=\"messages\"></div>\n <button type=\"button\" onclick='doit(\"get sensors\");'>Refresh</button>\n <hr/>\n <div id=\"status\">unknown</div>\n </font>\n\t\t\n\t\t\n\t\t\n\t\t\n\t\t\n\t\t\n\t\t<h1>Stato dei sensori</h1>\n\t\t<table style=\"border:1px solid black\" id=\"sensors\">\n\t\t<tr>\n\t\t\t<th>Sensore</th>\n\t\t\t<th>Stato</th>\n\t\t\t<th>spegni</th> \n\t\t\t<th>accendi</th>\n\t\t</tr>\n \n\t\n </table>\n\n<p> </p>\n\t\t\n\t\t\n\t\t\n\t\t\n\t\t\n\t\t\n\t\t\n </body>\n</html>\n","x":950,"y":1800,"wires":[["d10d920e.385218","760cc26e.8c730c"]]},{"id":"760cc26e.8c730c","type":"debug","z":"94fae675.1d692","name":"web","active":true,"console":"false","complete":"true","x":1210,"y":1940,"wires":[]},{"id":"d10d920e.385218","type":"http response","z":"94fae675.1d692","name":"","statusCode":"","headers":{},"x":1210,"y":1800,"wires":[]},{"id":"a315d422.3e68a","type":"http in","z":"94fae675.1d692","name":"","url":"/aprigarage","method":"get","upload":false,"swaggerDoc":"","x":300,"y":1860,"wires":[["5bfe903d.2d798"]]},{"id":"5bfe903d.2d798","type":"function","z":"94fae675.1d692","name":"Pagename=aprigarage","func":"msg.egoPageName=\"aprigarage\";\nmsg.egoWebSocket=\"box\";\nmsg.egoFiltro=\"Box\";\nmsg.egoPageTitle=\"Apri Garage\";\nmsg.egoAutoCommand=\"accendi Box\";\nreturn msg;","outputs":1,"noerr":0,"x":590,"y":1860,"wires":[["fcdd7771.03e5c8"]]},{"id":"bb7626dd.fa8798","type":"http in","z":"94fae675.1d692","name":"","url":"/chiudigarage","method":"get","upload":false,"swaggerDoc":"","x":290,"y":1940,"wires":[["fd138888.f74748"]]},{"id":"fd138888.f74748","type":"function","z":"94fae675.1d692","name":"Pagename=chiudigarage","func":"msg.egoPageName=\"chiudigarage\";\nmsg.egoWebSocket=\"box\";\nmsg.egoFiltro=\"Box\";\nmsg.egoPageTitle=\"Chiudi Garage\";\nmsg.egoAutoCommand=\"spegni Box\";\nreturn msg;","outputs":1,"noerr":0,"x":590,"y":1940,"wires":[["fcdd7771.03e5c8"]]},{"id":"40e76ff1.348e98","type":"function","z":"94fae675.1d692","name":"","func":"if(typeof msg.hap.context == \"undefined\")\n return null;\nif(msg.hap.context.keepalive){\nif(!msg.payload.TargetDoorState){\n msg.payload=\"accendi Box\";\n \n}else{\n if(msg.payload.TargetDoorState){\n msg.payload=\"spegni Box\";\n \n }\n \n}\n}\nreturn msg;","outputs":1,"noerr":0,"x":1322,"y":1319,"wires":[["8c172a11.6d7928"]]},{"id":"eab5b11.47355d","type":"link in","z":"94fae675.1d692","name":"Invia comandi","links":["aa050083.5381d"],"x":1141.5,"y":1318,"wires":[["6de40470.dffa44","3509093b.93f056","d58f8b30.2101b8","803697ee.bb469","40e76ff1.348e98","7e188d25.0811f4"]]},{"id":"3e653eac.32147a","type":"link out","z":"94fae675.1d692","name":"Ricevi stato","links":["adecaf51.0c0c88"],"x":987,"y":1319,"wires":[]},{"id":"7adfdcfc.60976c","type":"function","z":"94fae675.1d692","name":"","func":"msg.payload={a:true}\nreturn msg;\n\n//Try one of these: Name, CurrentDoorState, TargetDoorState, ObstructionDetected, LockCurrentState, LockTargetState, Name","outputs":1,"noerr":0,"x":530,"y":1499,"wires":[["3e653eac.32147a"]]},{"id":"335d521c.135ede","type":"inject","z":"94fae675.1d692","name":"Lista properties","topic":"","payload":"","payloadType":"date","repeat":"","crontab":"","once":false,"x":320,"y":1499,"wires":[["7adfdcfc.60976c"]]},{"id":"3509093b.93f056","type":"debug","z":"94fae675.1d692","name":"Garage payload","active":true,"console":"false","complete":"payload","x":1242,"y":1379,"wires":[]},{"id":"d58f8b30.2101b8","type":"debug","z":"94fae675.1d692","name":"Garage payload","active":true,"console":"false","complete":"hap","x":1312,"y":1459,"wires":[]},{"id":"eae5a78a.c3f3d8","type":"inject","z":"94fae675.1d692","name":"simula target aperto","topic":"","payload":"","payloadType":"date","repeat":"","crontab":"","once":false,"x":150,"y":620,"wires":[["199ba6d8.c068a1"]]},{"id":"199ba6d8.c068a1","type":"function","z":"94fae675.1d692","name":"TargetDoorState:false","func":"msg.payload={TargetDoorState:false}\n//msg.payload={CurrentDoorState:false,\n//TargetDoorState:false}\nmsg.mittente=\"sensori\";\nreturn msg;\n\n//Try one of these: Name, CurrentDoorState, TargetDoorState, ObstructionDetected, LockCurrentState, LockTargetState, Name","outputs":1,"noerr":0,"x":420,"y":620,"wires":[["3e653eac.32147a","8971e941.8eced8"]]},{"id":"789df96c.9c74d8","type":"inject","z":"94fae675.1d692","name":"simula target chiuso","topic":"","payload":"","payloadType":"date","repeat":"","crontab":"","once":false,"x":130,"y":760,"wires":[["3afcc4d5.36b5ac"]]},{"id":"3afcc4d5.36b5ac","type":"function","z":"94fae675.1d692","name":"TargetDoorState:true","func":"msg.payload={TargetDoorState:true}\n//msg.payload={CurrentDoorState:false,\n//TargetDoorState:false}\nmsg.mittente=\"sensori\";\nreturn msg;\n\n//Try one of these: Name, CurrentDoorState, TargetDoorState, ObstructionDetected, LockCurrentState, LockTargetState, Name","outputs":1,"noerr":0,"x":380,"y":700,"wires":[["3e653eac.32147a","8971e941.8eced8"]]},{"id":"803697ee.bb469","type":"debug","z":"94fae675.1d692","name":"mittente","active":true,"console":"false","complete":"mittente","x":1379.7777777777778,"y":1546.7777777777778,"wires":[]},{"id":"8971e941.8eced8","type":"debug","z":"94fae675.1d692","name":"invio a app","active":true,"console":"false","complete":"true","x":1022,"y":1399,"wires":[]},{"id":"7e188d25.0811f4","type":"function","z":"94fae675.1d692","name":"Aggiorna stato target","func":"\nif(typeof msg.payload.TargetDoorState== \"undefined\"){\n\n return null;\n}\n\nglobal.set('target', msg.payload.TargetDoorState);\n\nreturn msg;","outputs":1,"noerr":0,"x":1392,"y":1219,"wires":[["4e3ac065.f64e3"]]},{"id":"a7da892a.6f6b08","type":"function","z":"94fae675.1d692","name":"filtra incoerenti","func":"//memorizza current nel contesto\n//se current = target allora invia current all'app\n//se diverso allora passa al prossimo nodo\n//il quale attende 15 sec\n//e controlla se current di 15 sec prima = contest\n//se = allora invia target=current e current all'app\n//se diverso butta\n\n\nif(typeof msg.payload.CurrentDoorState== \"undefined\"){\n\n return null;\n}\n\n\nglobal.set('current',msg.payload.CurrentDoorState);\n\nvar target=global.get('target');\nif(typeof target== \"undefined\"){\n\n return [null,msg];\n}\n//node.log(target);\n//node.log(target==msg.payload.CurrentDoorState);\nif(target==msg.payload.CurrentDoorState)\n return [msg,null];\nreturn [null,msg];\n\n","outputs":"2","noerr":0,"x":500,"y":1239,"wires":[["3e653eac.32147a","fe37a57b.1dd4a"],["9cea4123.10dfa","2a78877c.f0d4e8"]]},{"id":"63bf719c.120f88","type":"function","z":"94fae675.1d692","name":"Invia current se stabile","func":"\nif(typeof msg.payload.CurrentDoorState== \"undefined\"){\n\n return null;\n}\n\nvar actual=global.get('current')||msg.payload.CurrentDoorState;\nif(actual==msg.payload.CurrentDoorState){\n msg.payload={TargetDoorState:actual,\n CurrentDoorState:actual}; \n return msg;\n}\nreturn null; \n ","outputs":"1","noerr":0,"x":820,"y":1200,"wires":[["3e653eac.32147a","7e188d25.0811f4","f7836047.c8765"]]},{"id":"9cea4123.10dfa","type":"delay","z":"94fae675.1d692","name":"","pauseType":"delay","timeout":"15","timeoutUnits":"seconds","rate":"1","nbRateUnits":"1","rateUnits":"second","randomFirst":"1","randomLast":"5","randomUnits":"seconds","drop":false,"x":660,"y":1160,"wires":[["63bf719c.120f88","3bf0876.28f8cf8"]]},{"id":"8fd4f87.359e908","type":"function","z":"94fae675.1d692","name":"CurrentDoorState:false","func":"msg.payload={CurrentDoorState:false}\n//msg.payload={CurrentDoorState:false,\n//TargetDoorState:false}\n//msg.mittente=\"sensori\";\nreturn msg;\n\n//Try one of these: Name, CurrentDoorState, TargetDoorState, ObstructionDetected, LockCurrentState, LockTargetState, Name","outputs":1,"noerr":0,"x":290,"y":1199,"wires":[["a7da892a.6f6b08","3ef0dfd0.f7d108"]]},{"id":"8546d4e5.9839a","type":"function","z":"94fae675.1d692","name":"CurrentDoorState:true","func":"msg.payload={CurrentDoorState:true\n}\n//msg.payload={CurrentDoorState:true,\n// TargetDoorState:true\n//}\n//msg.mittente=\"sensori\";\nreturn msg;\n\n//Try one of these: Name, CurrentDoorState, TargetDoorState, ObstructionDetected, LockCurrentState, LockTargetState, Name","outputs":1,"noerr":0,"x":260,"y":1260,"wires":[["a7da892a.6f6b08","3ef0dfd0.f7d108"]]},{"id":"4e3ac065.f64e3","type":"debug","z":"94fae675.1d692","name":"Stato target","active":true,"console":"false","complete":"payload","x":1377.142857142857,"y":1097.142857142857,"wires":[]},{"id":"fe37a57b.1dd4a","type":"debug","z":"94fae675.1d692","name":"stato porta coerente","active":true,"console":"false","complete":"payload","x":1127.9999999999998,"y":1043.9999999999998,"wires":[]},{"id":"2a78877c.f0d4e8","type":"debug","z":"94fae675.1d692","name":"stato porta incoerente","active":true,"console":"false","complete":"payload","x":1140,"y":1100,"wires":[]},{"id":"f7836047.c8765","type":"debug","z":"94fae675.1d692","name":"invio dopo attesa","active":true,"console":"false","complete":"payload","x":1137.9999999999998,"y":1161.9999999999998,"wires":[]},{"id":"3ef0dfd0.f7d108","type":"debug","z":"94fae675.1d692","name":"dai sensori","active":true,"console":"false","complete":"payload","x":307.99999999999994,"y":1097.9999999999998,"wires":[]},{"id":"3bf0876.28f8cf8","type":"delay","z":"94fae675.1d692","name":"","pauseType":"delay","timeout":"10","timeoutUnits":"seconds","rate":"1","nbRateUnits":"1","rateUnits":"second","randomFirst":"1","randomLast":"5","randomUnits":"seconds","drop":false,"x":340,"y":1020,"wires":[["bcb5fff.9f0cc"]]},{"id":"9564af5.de8a25","type":"serial-port","z":"","serialport":"/dev/ttyACM0","serialbaud":"9600","databits":"8","parity":"none","stopbits":"1","newline":"\\n","bin":"false","out":"char","addchar":true},{"id":"aaf6a7c3.cd43a8","type":"websocket-listener","z":"","path":"/ws/box","wholemsg":"false"}]

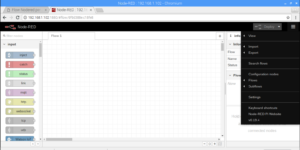

Cercare l’icona a righe sulla barra nera di Nodered, accanto a Deploy. Cliccarla. Appare un menù e scegliere import/clipboard

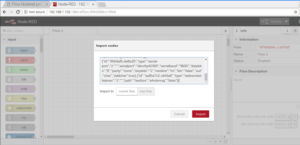

Incollare il contenuto e premere import.

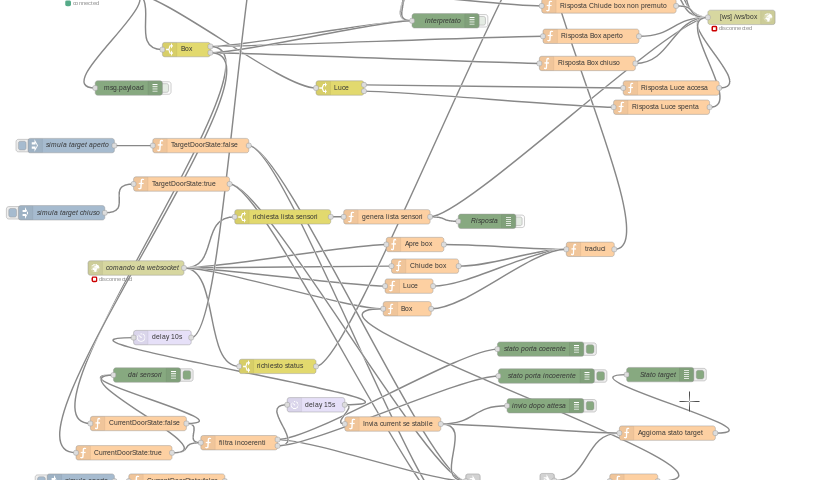

Sotto il mouse appare il flow. Cliccare per fissarlo.

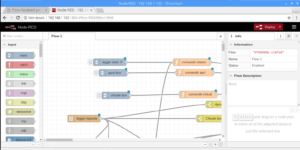

A questo punto premere Deploy per attivare il flow.

Eseguire doppio click sul tab Flow1 e cambiare il nome in Garage.

Per vedere se funziona, controllare la pagina:

http://192.168.1.102:1880/garage

Deve apparire:

Pagina web garage

Provare ad aprire il garage.

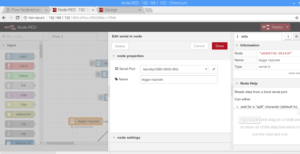

Se non funziona, controllare l’installazione di Arduino e controllare nel flow le porte su cui comunica.

Se vuoi aggiungere il flow per Apple Homekit

Installare il nodo homekit

Aprire una schermata di raspberry, con la tastiera e TV collegati, oppure tramite una sessione vnc.

Aprire una sessione terminale

Digitare

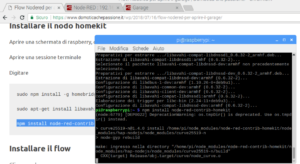

sudo npm install -g homebridge

sudo apt-get install libavahi-compat-libdnssd-dev

npm install node-red-contrib-homekit

Installare il flow

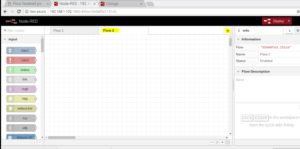

Cliccare sul +.

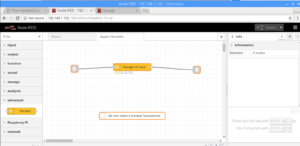

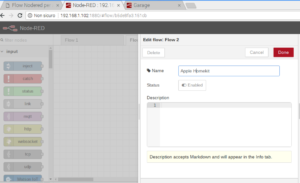

Aggiungere il flow che chiamerai Apple Homekit.

Seleziona la riga

[{"id":"adecaf51.0c0c88","type":"link in","z":"d1f9b302.63419","name":"Stato garage","links":["3e653eac.32147a"],"x":235,"y":160,"wires":[["8c921674.c64dd8"]]},{"id":"aa050083.5381d","type":"link out","z":"d1f9b302.63419","name":"Comandi Garage","links":["eab5b11.47355d"],"x":754.5,"y":164,"wires":[]},{"id":"608912d9.b1fa6c","type":"comment","z":"d1f9b302.63419","name":"Se non riesci a trovare l'accessorio","info":"Apri il blocco Garage.\nPrendi nota delle impostazioni Garage\nCancella il blocco chiamato Garage\nRicrea un blocco chiamato Garage2\nImpostalo come l'altro","x":480,"y":360,"wires":[]},{"id":"8c921674.c64dd8","type":"homekit-service","z":"d1f9b302.63419","accessory":"ad614da5.b9dd38","name":"Garage di casa","serviceName":"GarageDoorOpener","x":480.6249809265137,"y":153.2499885559082,"wires":[["aa050083.5381d"]]},{"id":"ad614da5.b9dd38","type":"homekit-accessory","z":"","accessoryName":"Garage","pinCode":"111-11-111","port":"","manufacturer":"EgoMaker","model":"EgoGarage","serialNo":"num1","accessoryType":"4"}]

eseguire Copia o premere CTRL+C.

Andare sul flow Apple Homekit.

Cercare l’icona a righe sulla barra nera di Nodered, accanto a Deploy. Cliccarla. Appare un menù e scegliere import/clipboard

Incollare il contenuto e premere import.

Sotto il mouse appare il flow. Cliccare per fissarlo.

A questo punto premere Deploy per attivare il flow.

Per provarlo, leggere l’articolo:

Aprire il garage con iPhone
